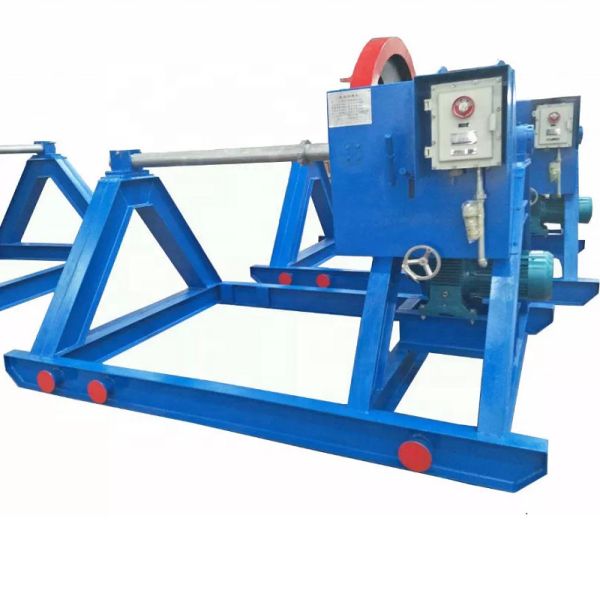

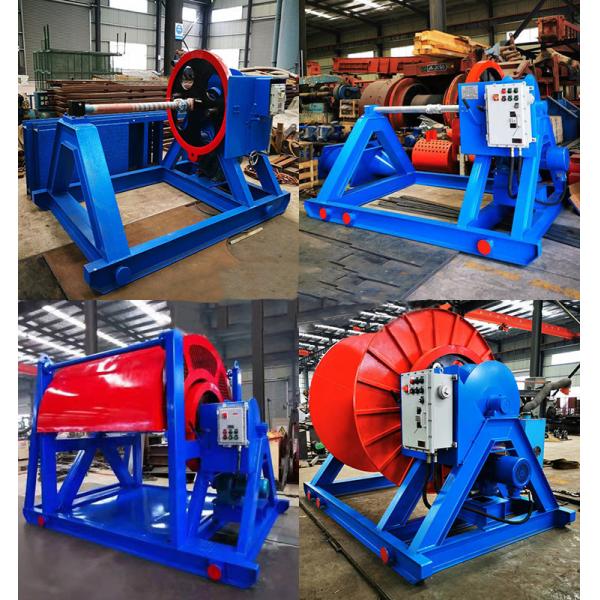

Hydraulic Wireline Spooling Unit Solid Control Equipment DSJ18-D Wireline Spooler
Wireline Spooler Description of Solids Control Equipment

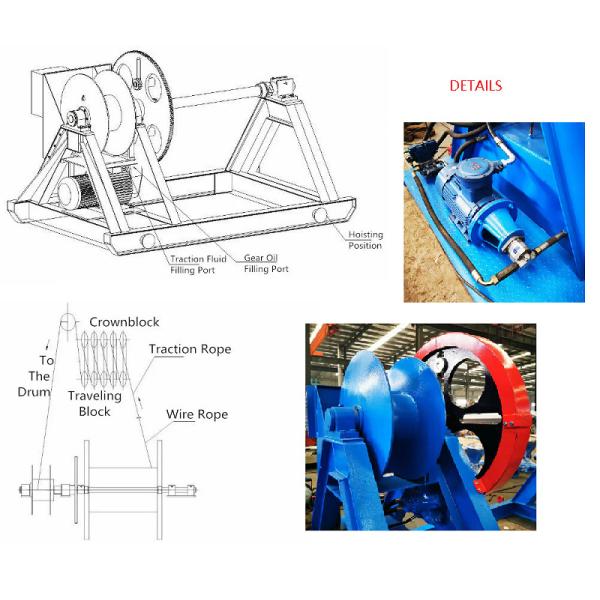

Wireline Spooler is a special equipment for the workingwireline retracting of crown block and traveling block of drilling rig(also available for retracting tool of similar principle).Because it is equipped with a lead line drum, it can complete the line string up work before drilling and retracting line when finished drilling. Work is more convenient and safe, easy to operate.
Solids Control Equipment Wireline Spooler Application
(1) For receiving or releasing drill rope when transfeming drill rig
(2) Fast install or replace rope for conveyor or elevator in mine industry
(3) For rising cable from or descend to well when well logging or electric pump operation
Wireline Spooler Feature of Drilling Spare Parts
(1) Use disk brake to get high braking power, the running roller can be braked momentanily
(2) Adopt double rollers design to achieve function of receiving or stringing rope, workload is reduced
(3) Electric, hydraulic and pneumatic model are optional, control the speed of spooler by stepless regulation
(4) Both electric and hydraulic system adopt explosion proof design.
(5) Rainproof shelter is available as requirement
Drilling Spare Parts Wireline Spooler Technical Parameter
| Model | DSJ8-D | DSJ15-D | DSJ8-Y | DSJ15-Y |
| Drive Type | Electric | Hydraulic |
| Support Spacing (mm) | 1260 | 1320 | 1260 | 1320 |
| Height of Center (mm) | 1105 | 1650 | 1105 | 1650 |
| Rated Output Torque (KN.m) | 10 |
| Rated Speed (RPM) | 3.7-18 | 0.55-17.5 |
| Motor Power (KW) | 5.5KW 380V 50Hz | |
| Hydraulic Pressure (MPa) | | 16MPa, Flow:100L/min |
| Max Workload (KN) | 80 | 150 | 80 | 150 |
| Weight (KG) | 1500 | 1800 | 1500 | 1800 |
| External Dimension (mm) | 2673x1728x1630 | 3045x2050x1845 | 2673x1728x1845 | 3045x2050x1845 |
